The Backbone of Precision: Critical 5-Axis Machining Center Parts for Reliable Performance

A 5-axis machining center is the pinnacle of modern subtractive manufacturing, capable of producing complex aerospace components, medical implants, and intricate molds in a single setup. The magic of simultaneous 5-axis movement doesn’t come from a single breakthrough, but from the flawless orchestration of dozens of high-precision 5-axis machining center parts. When these components wear or fail, your accuracy, surface finish, and cycle times all suffer. Understanding what goes into your machine is the first step toward smarter maintenance, faster repairs, and more profitable production.

Here at DK Tooling, we know that uptime is everything. Whether you’re replacing a single worn part or sourcing a complete bill of materials for a rebuild, having a partner who understands 5-axis machining center parts at a granular level gives you a competitive edge.

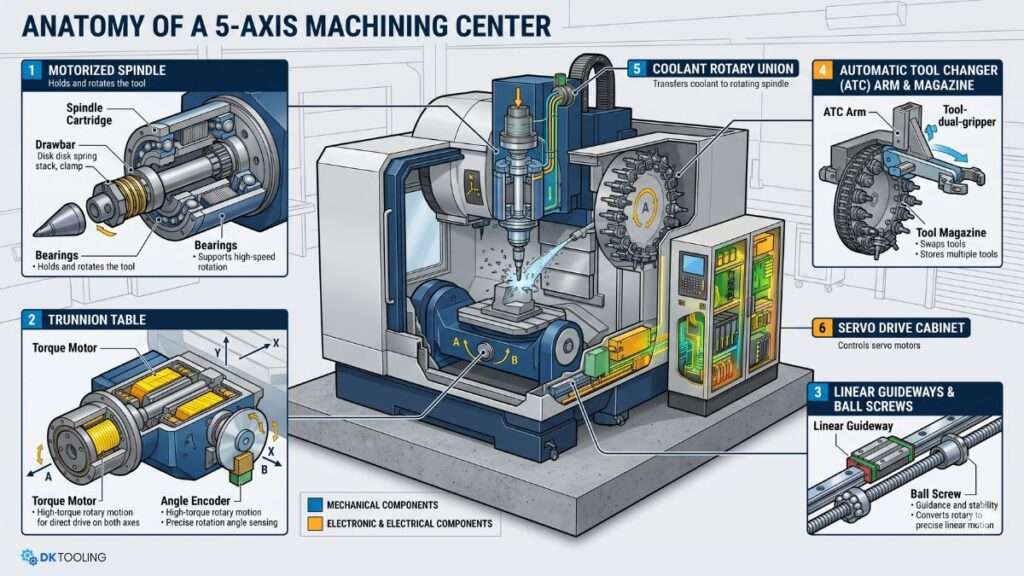

Why 5-Axis Machining Center Parts Define Your Output

Every axis of motion, every tool change, and every drop of high-pressure coolant relies on a chain of interdependent components. In a 5-axis machine, a small deviation in a single component gets amplified through the kinematic chain, potentially scrapping expensive workpieces. Choosing the right 5-axis machining center parts isn’t a cost; it’s an investment in repeatable micron-level precision.

The Spindle Assembly: Heart of the Machine

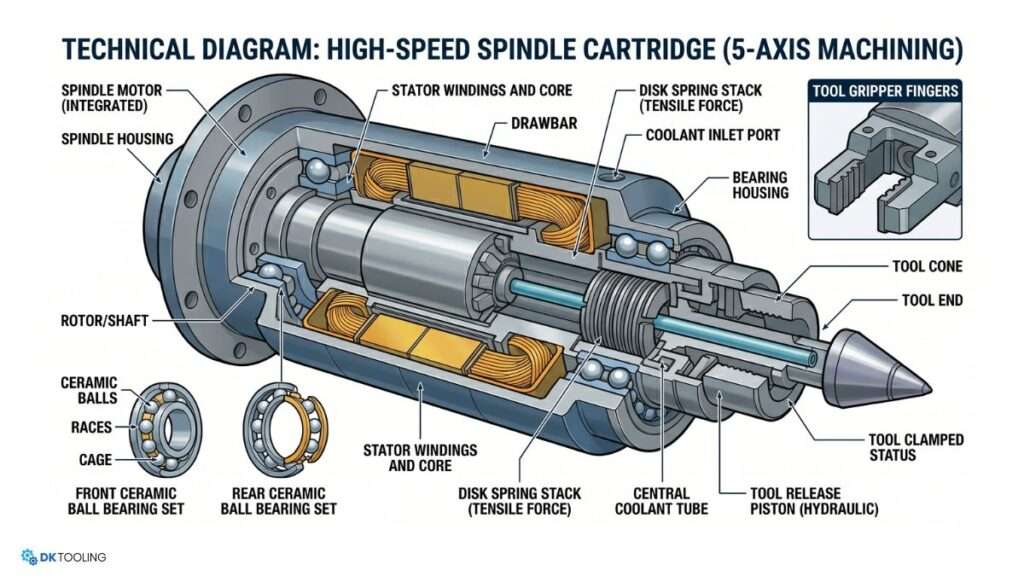

The spindle isn’t just a motor. In a 5-axis center, it often forms part of a tilting or swiveling head. Key internal components include:

• Motorized Spindle Cartridge: Direct-drive units that minimize vibration at high RPM.
• Drawbar & Gripper Fingers: Spring-loaded mechanisms that clamp tool holders with thousands of pounds of force. Worn grippers can cause tool pull-out during heavy contouring.
• Bearing Sets: Precision angular contact ceramic hybrid bearings, usually in matched pairs, handle both radial and axial loads while resisting thermal expansion.
• Labyrinth Seals & Air Purge Systems: Protect the spindle’s internal bearings from coolant and fine swarf.

When a spindle bearing begins to whine or a drawbar loses clamping pressure, you need a reliable source for these exact 5-axis machining center parts, often with OEM traceability, to get your machine back to its original specification.

Rotary Trunnion Tables: Where the Extra Axes Live

The addition of the A and C axes (or B and C) typically happens through a trunnion-mounted rotary table. This assembly is packed with precision components:

• Direct Drive Torque Motors: Provide high torque at low speeds with zero backlash, essential for simultaneous interpolation.
• Absolute Angle Encoders: Sealed glass or inductive encoder discs feed angular position data back to the control. Even tiny contamination here causes positioning errors.
• Hydraulic/Pneumatic Clamp Units: Lock the axis during heavy roughing cuts.
• Slip Rings and Rotary Unions: Deliver electrical power, signals, and coolant through a continuously rotating interface.

Failures in these 5-axis machining center parts often present as surface finish degradation or positional drift that worsens as the machine warms up.

Linear Motion Systems: Guideways and Ball Screws

The X, Y, and Z linear axes in a 5-axis machine must be exceptionally rigid because they often carry the additional mass of a trunnion and a heavy workpiece. Key wear items include:

• Linear Guide Trucks & Rails: Recirculating ball bearing blocks that ride on precision-ground rails. Replacing trucks and their attached wiper scrapers is one of the most frequent maintenance operations for any high-volume 5-axis installation.
• Precision Ball Screws: Double-nut, preloaded screws eliminate backlash. If way cover tears allow chips to ingress, ball screws can be destroyed rapidly.
• Couplings & Motor Mounts: Interface the servo motors to the ball screws.

In a 5-axis environment, these linear components directly influence the volumetric accuracy of your entire setup, making the quality of replacement 5-axis machining center parts non-negotiable.

Control and Feedback Components

A 5-axis CNC control (Fanuc 31i-B5, Siemens SINUMERIK ONE, Heidenhain TNC7) handles complex Tool Center Point (TCP) kinematics. The hardware parts that support this include servo amplifiers, power supply modules, I/O interface boards, and dedicated feedback cables. When a drive throws an alarm, getting the exact replacement board or drive unit is critical to restore full multi-axis interpolation capability.

Automatic Tool Changer (ATC) and Coolant System Parts

5-axis machining generates chips in every possible direction. The systems that manage tooling and coolant must be robust:

• ATC Cam Box & Swing Arm: A mechanical gearbox that executes the tool change sequence. Overload clutch plates and shear pins protect it from crashes.
• Tool Magazine Pots & Fingers: Broken springs or cracked pots can drop tools onto the trunnion, causing significant damage.
• Coolant-Through-Spindle Rotary Union: A mechanical seal assembly that feeds coolant into the rotating spindle at pressures exceeding 1,000 PSI. Regular seal kit replacement prevents catastrophic water damage to the spindle bearings.
• Way Covers & Aprons: Protective shields that keep chips away from linear guides. Replacing torn covers urgently prevents secondary damage.

The DK Tooling Advantage: Bulk Supply of All 5-Axis Parts

Maintaining and repairing 5-axis machining centers demands a supply partner that understands urgency, authenticity, and volume. At DK Tooling, we don’t just list a few popular items online. We provide all kinds of 5-axis machining center parts in bulk quantities, even if the exact component you need isn’t currently visible on our website. Our global sourcing network and deep industry relationships mean we can often track down hard-to-find spindles, servo drives, trunnion motors, and linear motion sets much faster than you’d expect.

If you are performing a scheduled factory rebuild, stocking your MRO crib, or simply need to get a critical machine back online, we encourage you to reach out directly. We specialize in high-volume parts supply and can handle blanket purchase orders for consumable 5-axis machining center parts like wiper seals, drawbar kits, and rotary union rebuild kits. Just as we highlighted in our piece on where Milwaukee power tools are made — where understanding the origin and quality of a tool directly affects its performance — we apply that same scrutiny to every component we supply.

Don’t see what you’re looking for in our online listings? That doesn’t mean we can’t supply it. Browse our shop to explore our current inventory, and for any bulk or unlisted 5-axis machining center parts, simply visit our contact page and let our team do the sourcing for you. We carry parts that keep American manufacturing moving, and we’re ready to help you find exactly what you need.

Final Thoughts

The performance of a 5-axis machining center is entirely dependent on the health of its individual components. From the torque motor that positions your part to the wiper seals that guard the linear rails, treating 5-axis machining center parts as strategic assets transforms your maintenance approach from reactive to predictive.

Partner with DK Tooling and gain a supplier who speaks the language of precision manufacturing. Whether it’s a single emergency replacement or a full bulk order of consumable parts, we’re here to keep your spindles turning and your axes articulating with absolute precision. Reach out today, and let’s get your machine back to peak performance.
